Current Shunt

Current shunt is used for current detection by BMS during charge and discharge.

  • Chargery BMS detect charge and discharge currnt by one SHUNT
  • Display positive charge current and negative discharge current
  • Each shunt is calibrated before delivery
  • Exchange Shunt must be calibrated again
  • 75mV of Rated voltage for all  shunt.
Product Compare (0)
100A Current Shunt
100A Current Shunt
$6.90
100A / 75mV Shunt with Mounting BaseSpecificationsNominal resistance : 0.75 mOhm Tolerance : 0.5% ..
200A Current Shunt
200A Current Shunt
$13.90
200A / 75mV Shunt with Mounting BaseSpecificationsNominal resistance : 0.375 mOhmTolerance : 0.5%Rat..
300A Current Shunt
300A Current Shunt
$19.90
300A / 75mV Shunt with Mounting BaseSpecificationsNominal resistance : 0.25 mOhmTolerance : 0.5%Rate..

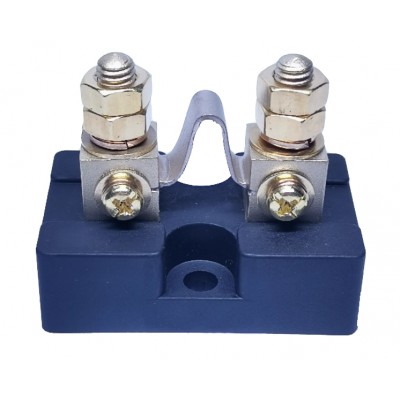

30A Current Shunt
30A Current Shunt
$4.90
30A / 75mV Shunt with Mounting BaseSpecificationsNominal resistance : 2.5 mOhm Tolerance : 0.5% Ra..
500A Current Shunt
500A Current Shunt
$29.90
500A / 75mV Shunt with Mounting BaseSpecificationsNominal resistance : 0.15 mOhmTolerance : 0.5%Rate..
600A Current Shunt
600A Current Shunt
$32.90
600A / 75mV Shunt with Mounting BaseSpecificationsNominal resistance : 0.125 mOhmTolerance : 0.5%Rat..
Showing 1 to 6 of 6 (1 Pages)
