600W Power Supply 5V 12V 15V 24V SMPS RC balance charger

Chargery S600, SMPS 600W, PFC programmed power supply, can oupout 25A at 5V-26V, 600W at AC90V~265V in a smaller size. Many creative technology help to realize up to 91% of efficiency, and the internal temperature is still under 85℃. it mainly applied to RC balance charger.

Features

• Intelligent control output voltage and current by microprocessor, 100% calibration before delivery
• ±1% voltage and current accuracy
• Active PFC: smaller AC input current less interference, and Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
• AC 90-265V worldwide operation: need not any alternative switcher, worldwide safe operation.
• Low power consumption (less than 1W) at idle mode and standby mode
• Up to 94% of convert efficiency.
• Programmable output voltage from 5V to 26V
• Programmable output current from 1A to 25A
• TFT color LCD display output Voltage, current, power and internal temperature on time.

• Over current, over voltage, over load, over temperature, and short circuit protection
• Short-circuit protection on output, safer and more reliable.
• Intelligent cooling fans speed adjust automatically, the start temperature can be set up
• 2 outputs can do more chargers simultaneously
• Synchronous Rectification make sure the high efficiency and small size
• High power density: 495W/Kg
• Start at no load or full load perfectly
• Approved by CE
• 12 months warranty

Input

• Rated Voltage ： AC110 / 220V
• Voltage allowed ：AC100 ~ 265V
• Rated Freq.   ：50/60Hz
• Freq. Allowed ：47~63Hz
• Max Current ： 8A @90V, 3.3A @220V
• Efficiency: 91% at 60% load and 220Vac input.
• Active PFC: PF>0.99 at 90VAC and 100% of load; PF>0.97 at 220VAC and 100% of load

Output

• Voltage ：5 ~ 26V programmed
• Voltage accuracy: ±1%
• Ripple voltage: 150mV.
• Current：0 ~ 25A (26A MAX.)
• USB: 5VDC, 0~500mA.
• Or USB typeA : 5V 3A ,  TypeC : 5V /9V /12V /15V @3A or 20V@5A .

Protection

• Over voltage protection, over 2V setup value.
• Over current protection, over 2A setup value.
• Over load protection, 600W max.
• Over temperature protection, 100℃ max.
• Short- circuit protection on output.

Mechanical Characteristics

• Size ：223*106*55 (L*W*H, mm) or 8.7 * 4.2 * 2.16 (L*W*H, inch)
• Weight: 1.25Kg without input cable

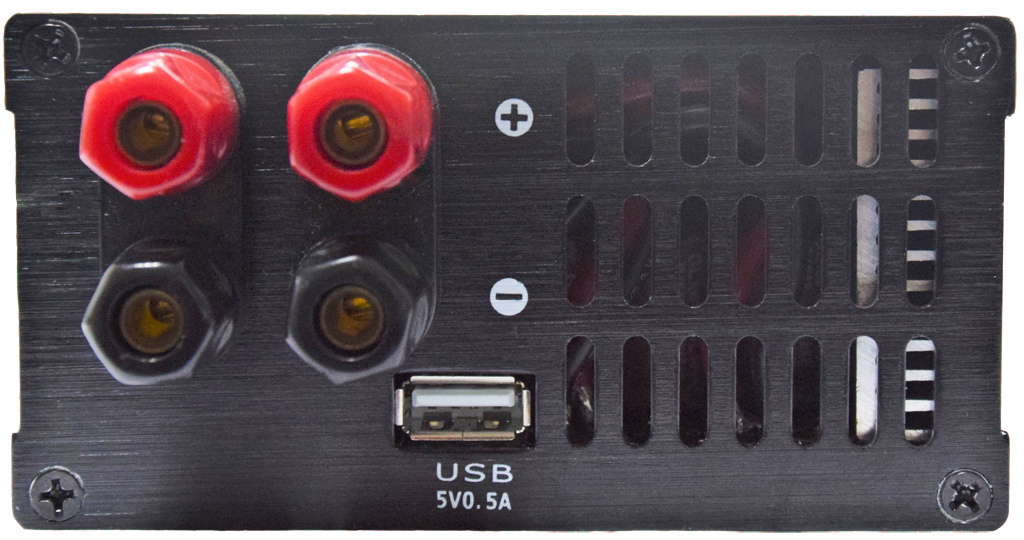

• Output DC connector: 2 pairs 4mm gold banana female connector, each connector for 25A maximal current.

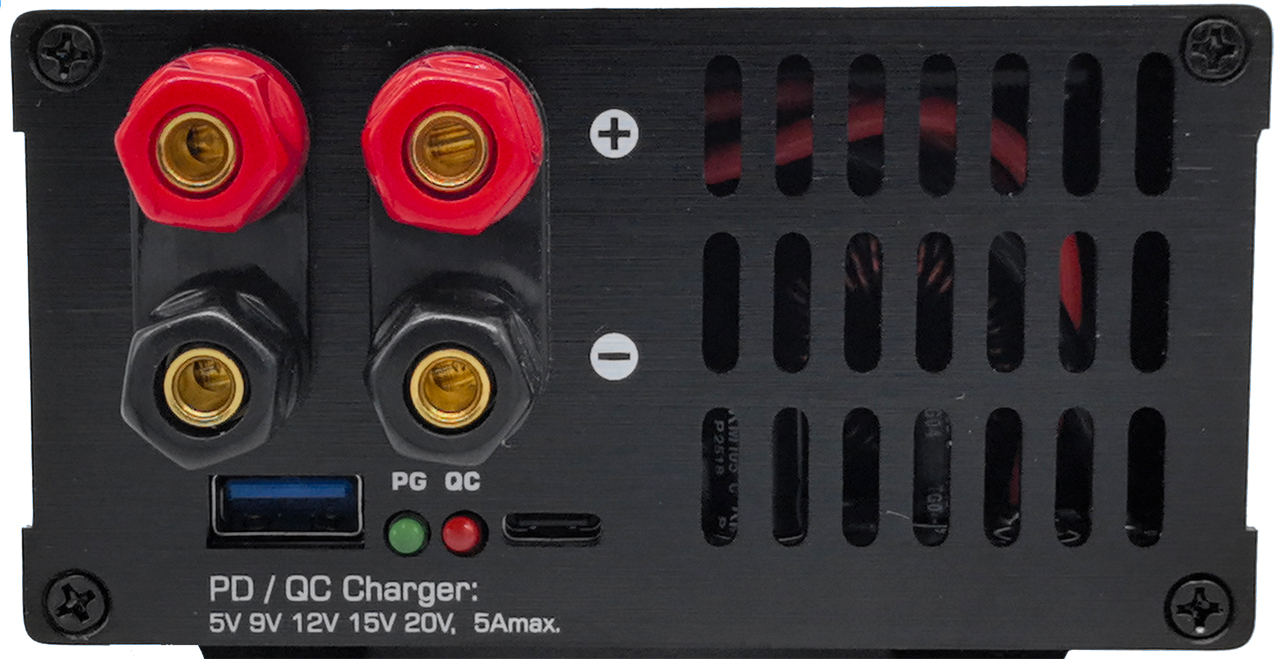

PD/QC CHARGER

for 600W S600PLUS with PD/QC charger, support the below charging protocol:

• PPS/PD3.0/PD2.0
• QC4+/QC4/QC3.0/QC2.0
• AFC
• FCP
• SCP
• PE2.0/PE1.1
• SFCP
• VOOC

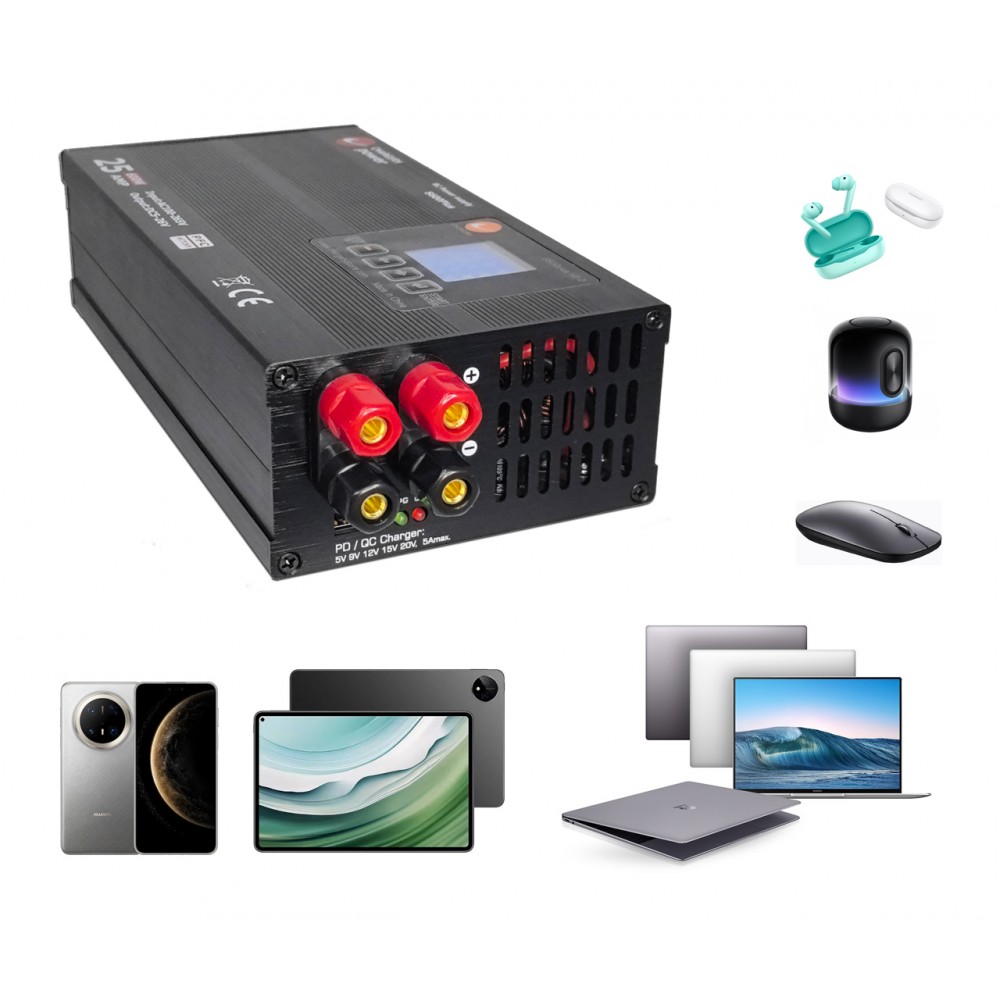

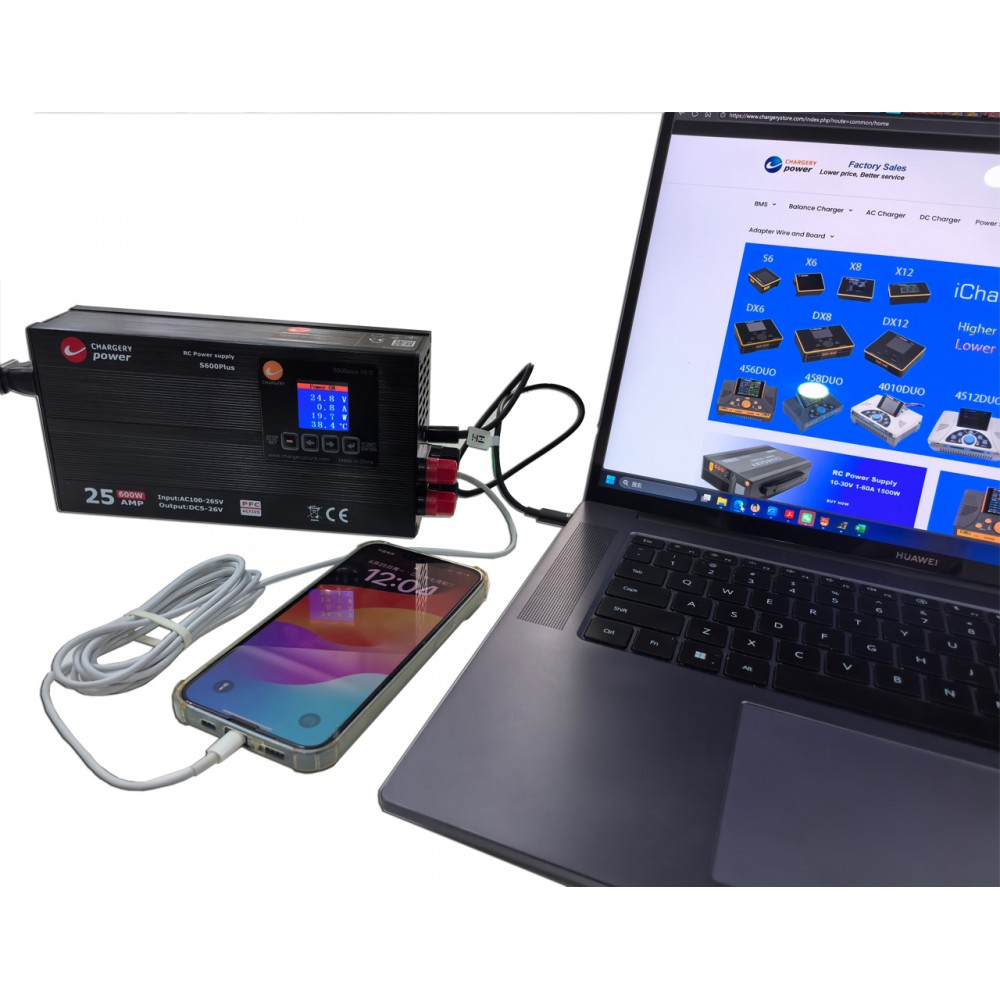

USB type A port and typeC port can connect to Bluetooth heaset, Bluetooth Mouse, Bluetooth speaker, mobile phone, Tablet or notebook at the same time.

On USB typeA can output 5V 3A, and on typeC can output 5V/9V/12V/15V 3A or 20V 5A.

Manual

• S600plus manual v2.0
