DC Contactor

Video Description

CHARGERY DC Contactor (DCC) is updated to V2.0, NEW features as below:

• Low-power consumpton, 15mA at 12V driven voltage, far lower than SSR and other relay
• Maximum operating voltage: 110V
• Maximum continuous carry current:1000A on Uni-directional DCC
• Maximum continuous carry current:600A on Bi-directional DC
• Builit-in surge suppressing circuit to antispark when battery connected to DCC
• Builit-in pre-charge circuit to suppress surge current
• Bi-directional DCC can be used on charge and discharge on common port, such as home storage energy system
• Unit-directional DCC can be used on EV, or other applicaton like charge and discharge on seperate port
• Cooling fan adjust speed according to internal temperature
• Over temperature protection
• Isolated driven voltage is bucked down from battery or power supply even higher to 100V in charging or in discharging
• CHARGERGY DCC can be installed  on battery postive （high voltage side) , that is more safe than on negative (low voltage side), when DCC is OPEN (cut off circuit), all circuit exclude battery / power supply will be power outage

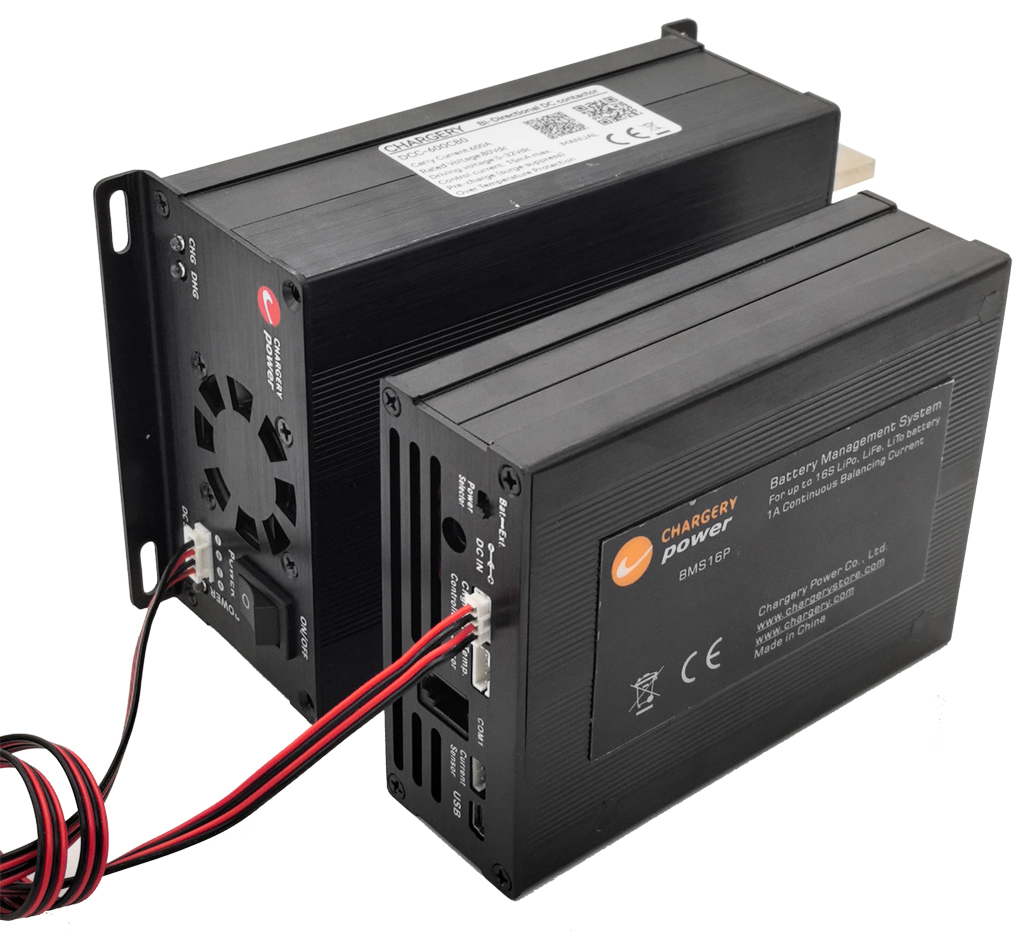

600A 80V Bi-directional DCC and 600A 16S BMS combo.

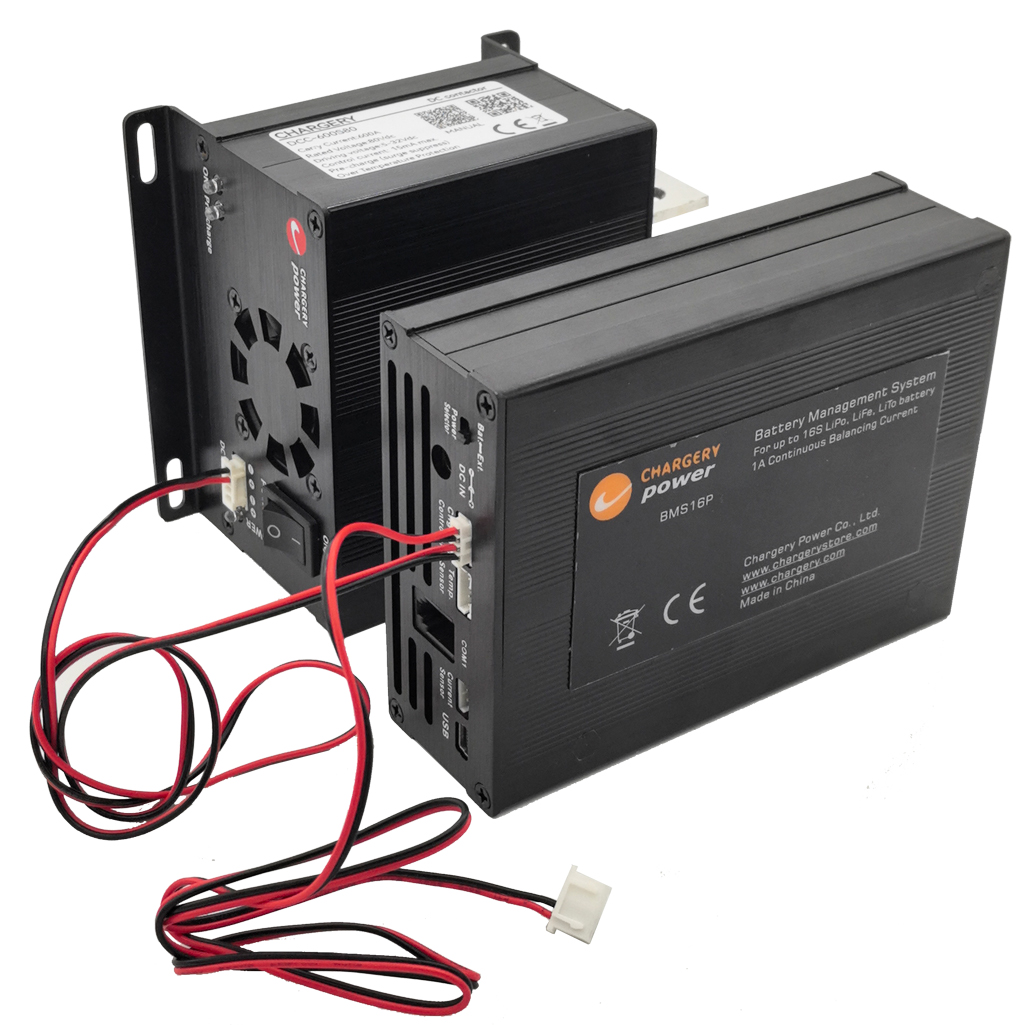

600A Uni-directional DCC and 600A BMS combo

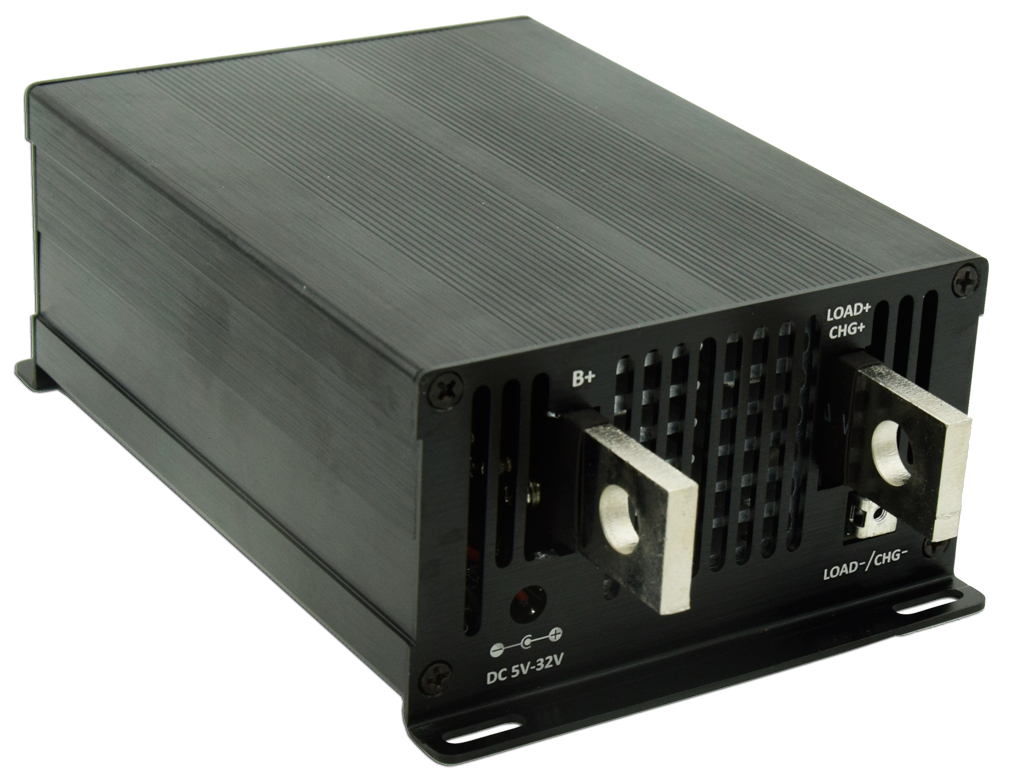

Bi-directional DCC, 600A 80V
