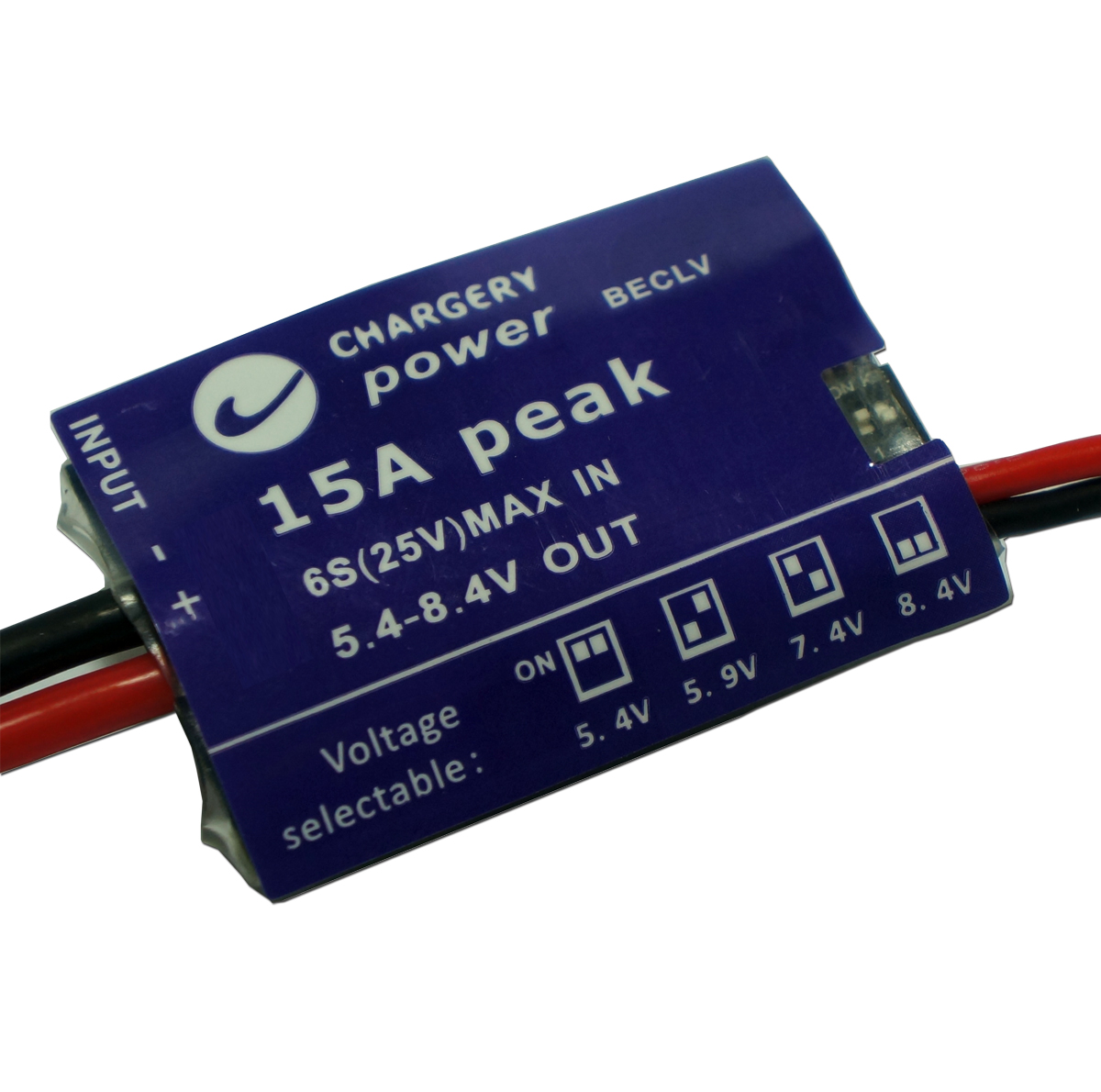

6-28V input 10A output converter

The DC converter is applied to drive  5V device at 5V-8.4V or charge the battery, 10A continuous, or 15A peak output can meet many applications.

Features:

• High current capability of up to 10Amps continuous, 15Amps peak at input under 12V, 8Amps continuous, 12Amps at input under 25V.
• High power output that handles multiple servos including digital servos.
• Built-in Current and Thermal overload protection.
• Short circuit protection on output
• Over voltage protection on output, when output voltage over 10.0V, the BEC will turn off within 0.1uS prevent receiver and servo from burning or fire.
• Ideal for R/C model 2.4GHz radio systems.

Specifications

• Input voltage: DC 6-28V or 2S to 6S lipo.
• Output voltage: DC 5.4V, 5.9V, 7.4V and 8.4V selectable output voltage.
• Output current : High current capability of up to 10Amps continuous, 15Amps peak at input under 12V, 8Amps continuous, 12Amps at input under 25V.
• LED indicator: blue LED indicate the output “GOOD”
• Size:L43*W27*H10mm.
• Weight: 30g excluding wires


Package Contents:

•  Chargery CPBECLV unit: 1pcs
•  User Instruction Manual: 1pcs

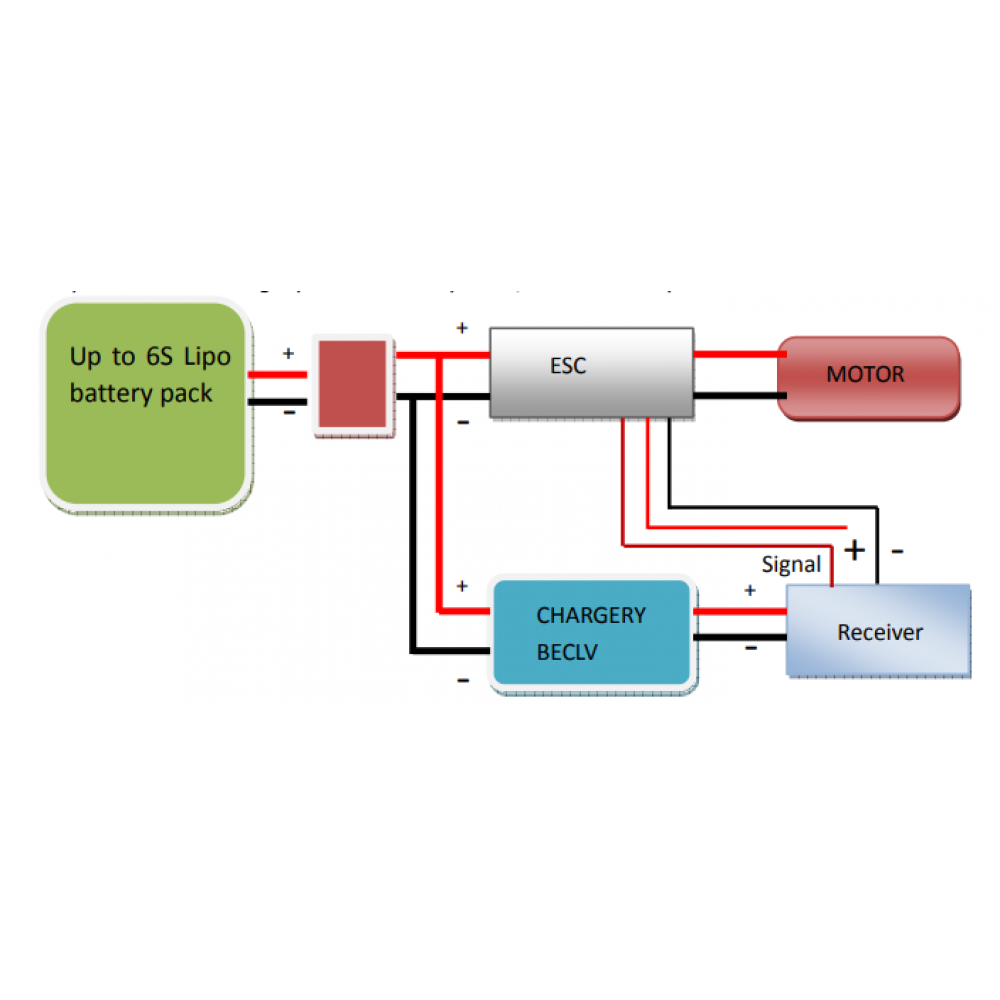

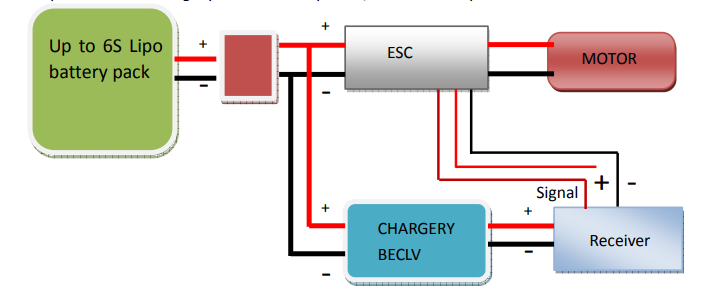

Connection diagram

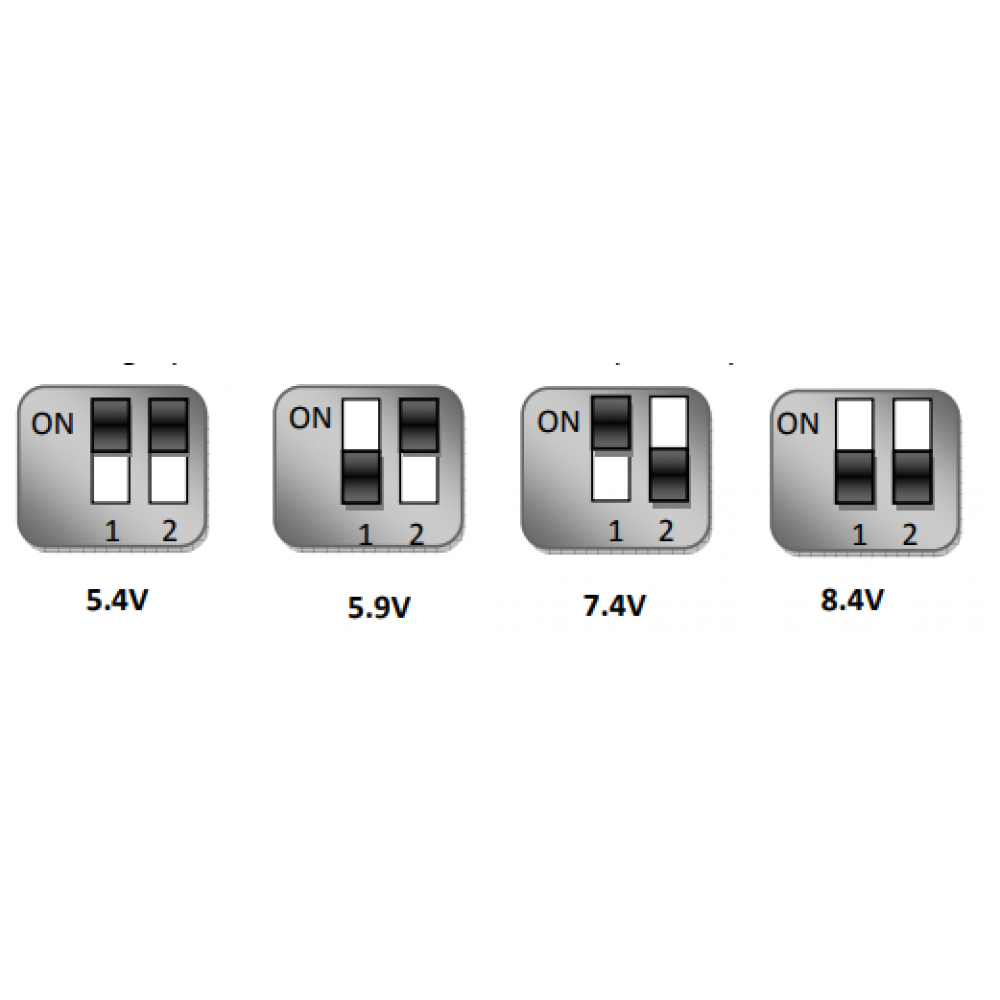

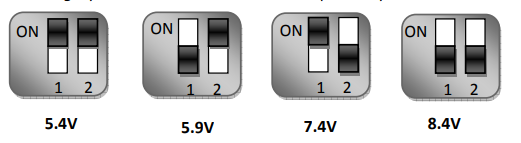

Voltage selectable switcher

Manual

• Chargery BECLV manual
