Power Supply & Balance Charger

0 reviews | Write a review

Brands CHARGERY
Product Code: 61215-DX6
Availability: In Stock

$290.00
Ex Tax: $290.00

Available Options

Combo Model

Remark

Delivery Date

Special Requirements

Qty

Add to wishlist Add to compare

Description Reviews (0)

600W/1200W/1500W PFC programmable power supply can work with DX6 6S balance charger together perfectly. The COMBO has the lower cost for RC applications.

NOTE: To buy power supply and charger combo can save 20usd ~ 70usd. and the connection wire between power supply and charger is free.

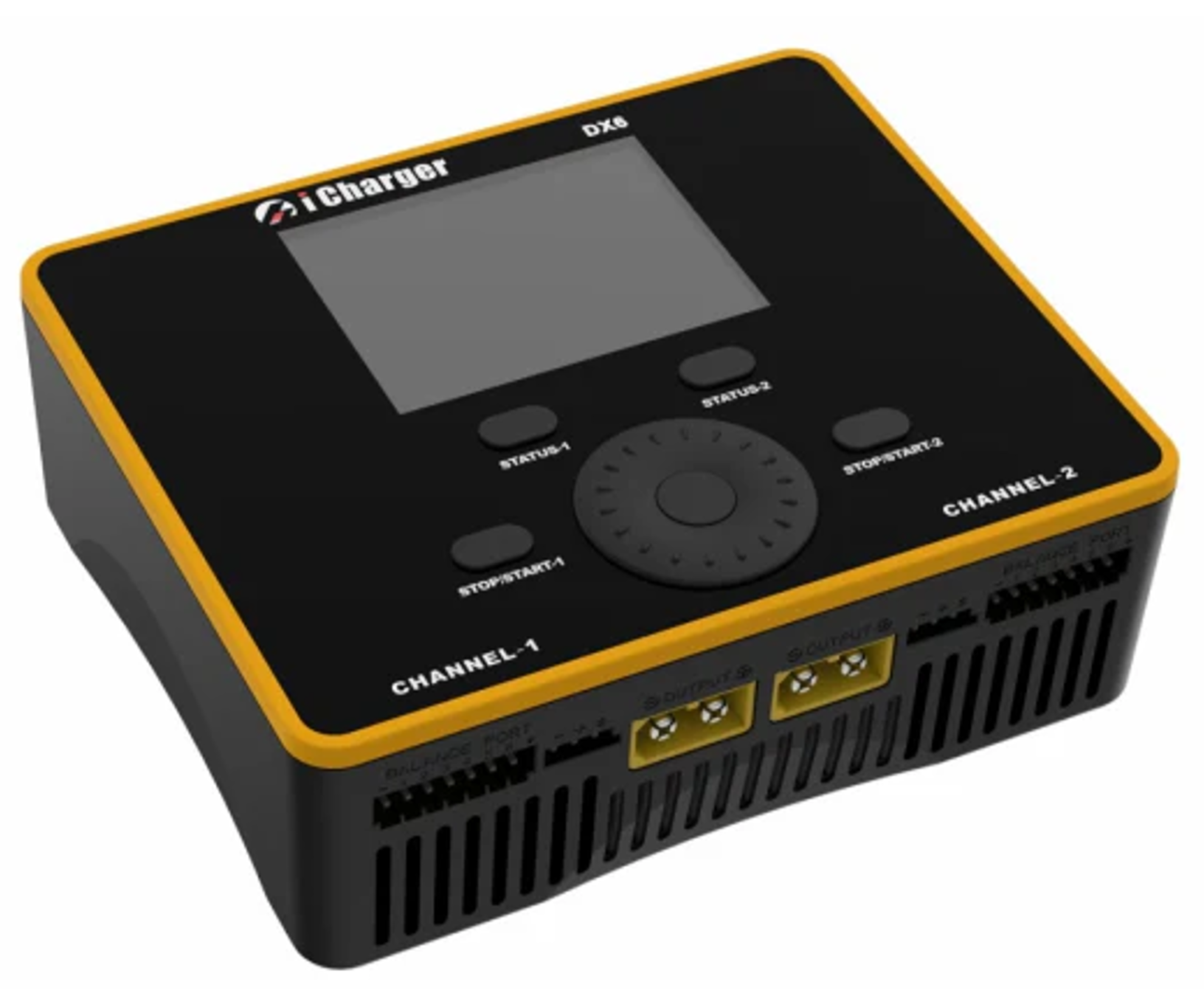

DX6 specification

S1500 specification

Input voltage	AC 90-265V
Input RMS current max.	18A @90V, 7.5A @220V
Efficiency	94% at 65% load and 220Vac input
Active PFC	PF>0.99 at 90VAC and 100% of load; PF>0.97 at 220VAC and 100% of load
Ouput voltage	DC 10 ~ 30V programmed
Ouput current	1 ~ 60A programmed
Ouput power	1500W max.
Dimensions	27517068 (LWH, mm) or 10.8 * 6.7 * 2.7 (LWH, inch)
Weight	3kg

S1200 specification

Input voltage	AC 90-265V
Input RMS current max.	15A @90V, 6.5A @220V
Efficiency	94% at 65% load and 220Vac input
Active PFC	PF>0.99 at 90VAC and 100% of load; PF>0.97 at 220VAC and 100% of load
Ouput voltage	DC 12 ~ 24V programmed
Ouput current	0 ~ 50A
Ouput power	1200W max.
Dimensions	27517068 (LWH, mm) or 10.8 * 6.7 * 2.7 (LWH, inch)
Weight	3kg

S600 specification

Input voltage	AC 90-265V
Input RMS current max.	8A @90V, 3.3A @220V
Efficiency	91% at 65% load and 220Vac input
Active PFC	PF>0.99 at 90VAC and 100% of load; PF>0.97 at 220VAC and 100% of load
Ouput voltage	DC 5 ~ 26V programmed
Ouput current	1 ~ 25A programmed
Ouput power	600W max.
Dimensions	22310655 (LWH, mm) or 8.7 * 4.2 * 2.16 (LWH, inch)
Weight	1.25kg
