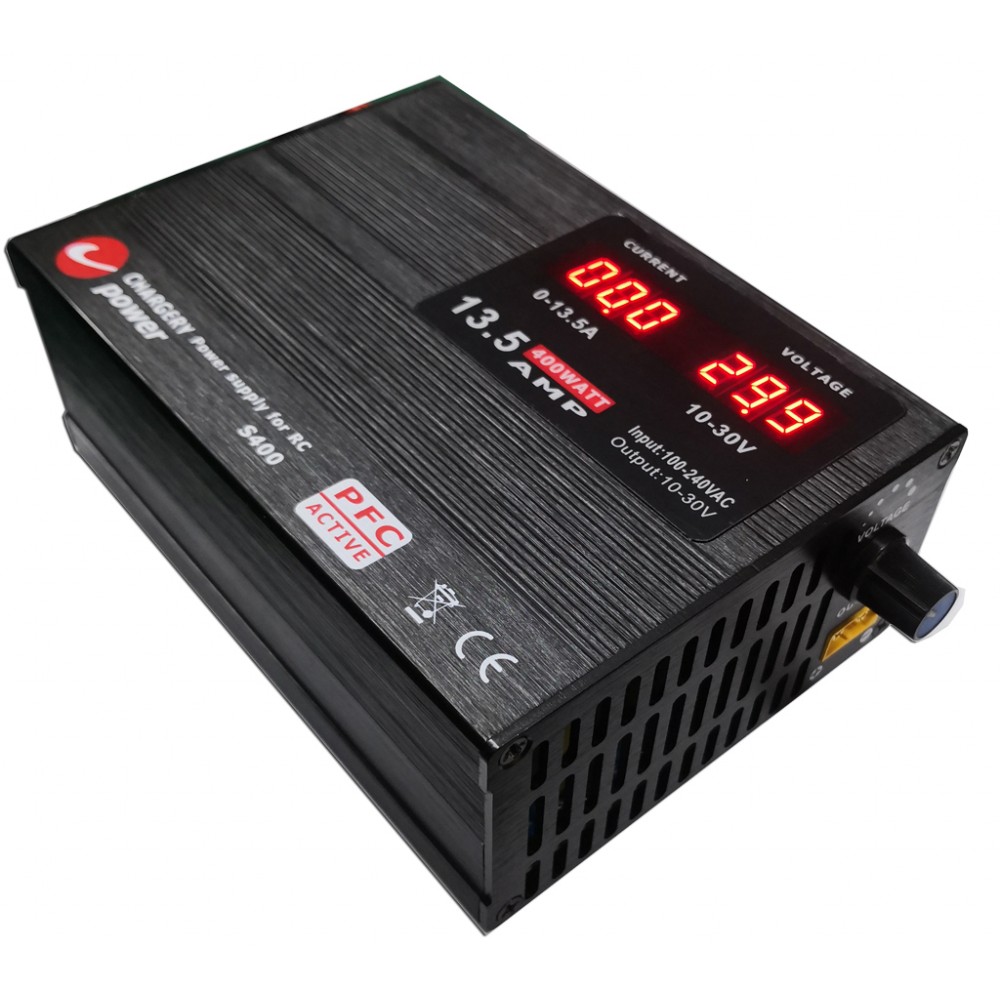

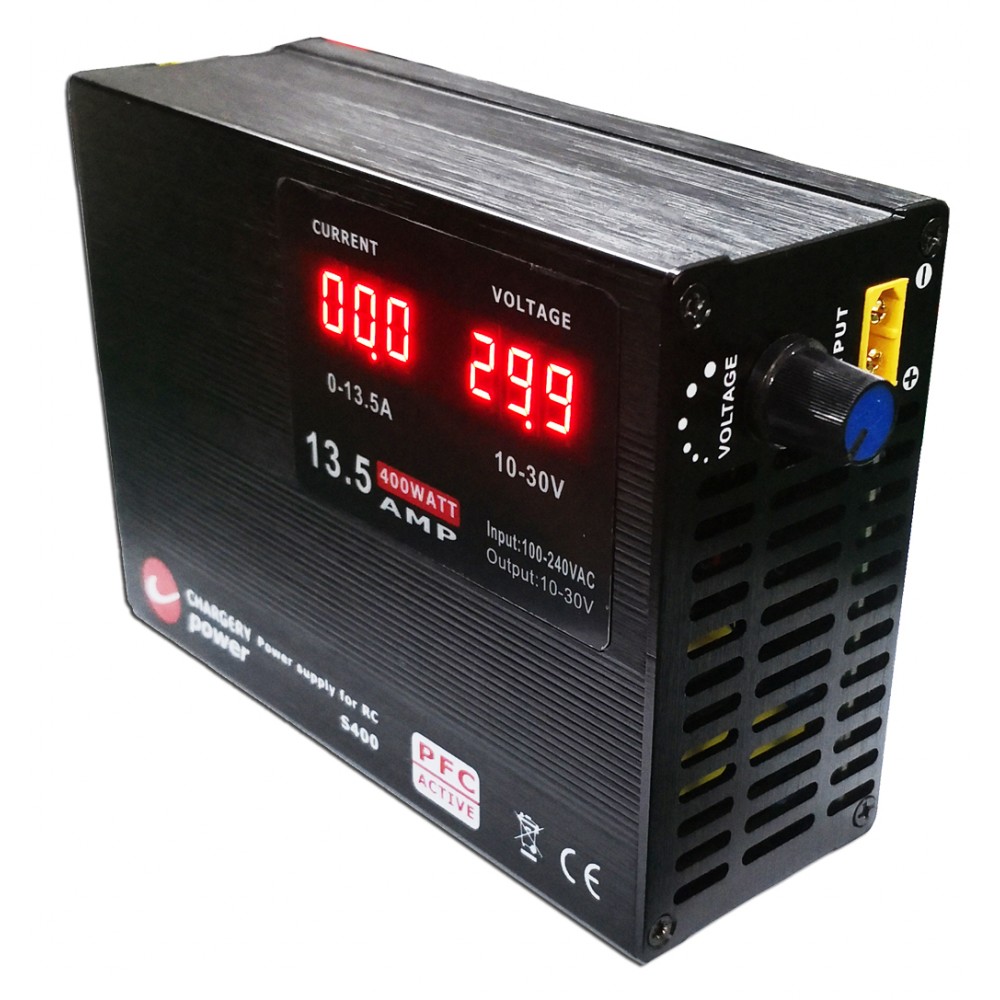

400W power supply
S400 is a PFC power supply, it can output 13.5A at 10V-30V 400W max. at AC100V~240V, and the internal temperature is still under 75℃.
Features
- Active PFC: smaller AC input current less interference, and Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
- AC100-240V worldwide use: need not any alternative switcher, worldwide safe operation
- Up to 92% of convert efficiency
- Programming output voltage from 10 to 30V, suitable for more application
- Digital display output voltage and current on time
- Over current, over voltage, over load and over temperature protection, and resume automatically
- Short-circuit protection on output, safer and more reliable
- Intelligent cooling fans turned on at over 45℃and increase speed with the temperature going up.
- Synchronous Rectification make sure the high efficiency and smaller size
- Start at no load or full load perfectly
- Approved by CE
- 12 months warranty

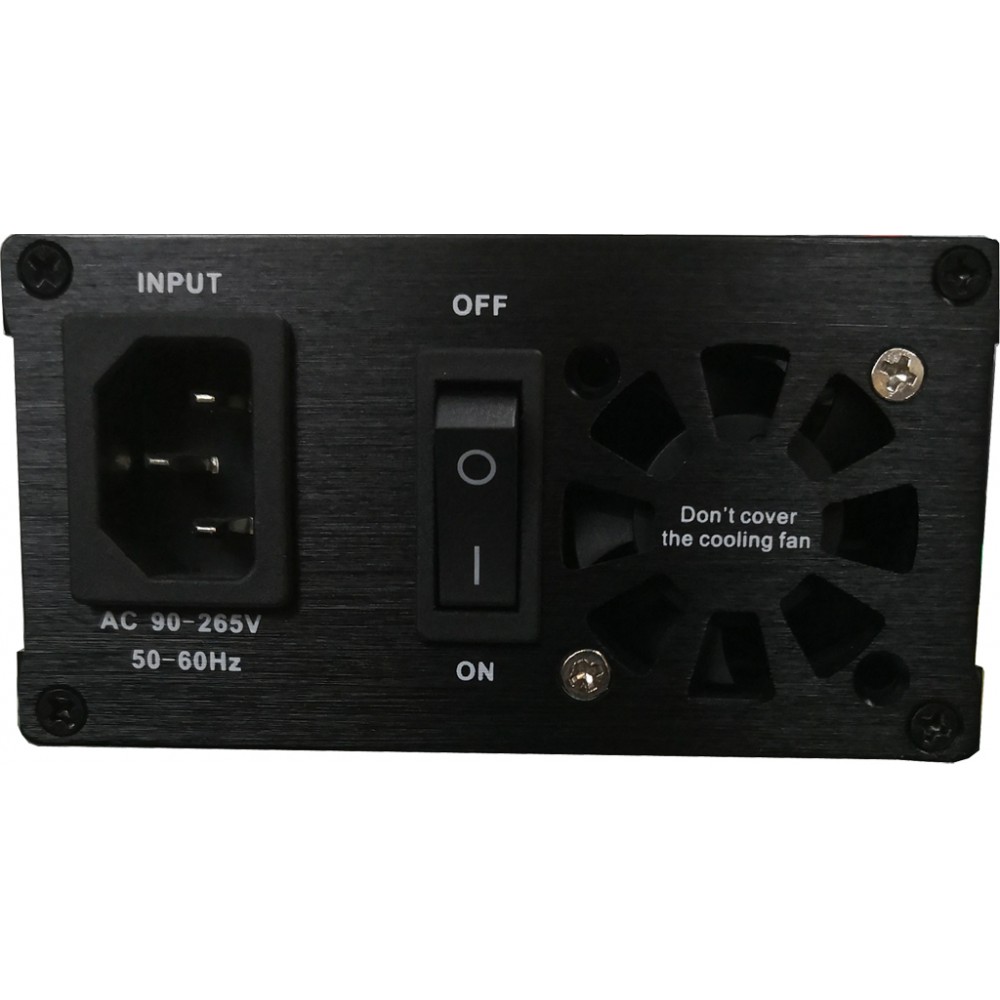

Input
- Rated Voltage : AC110 / 220V
- Voltage allowed :AC100 ~ 240V
- Rated Freq. :50/60Hz
- Freq. Allowed :47~63Hz
- Max Current : 4.5A @100V, 2.0A @220V
- Efficiency: 90% at 60% load and 220Vac input.
- Active PFC: PF>0.99 at 100VAC and 100% of load; PF>0.97 at 220VAC and 100% of load

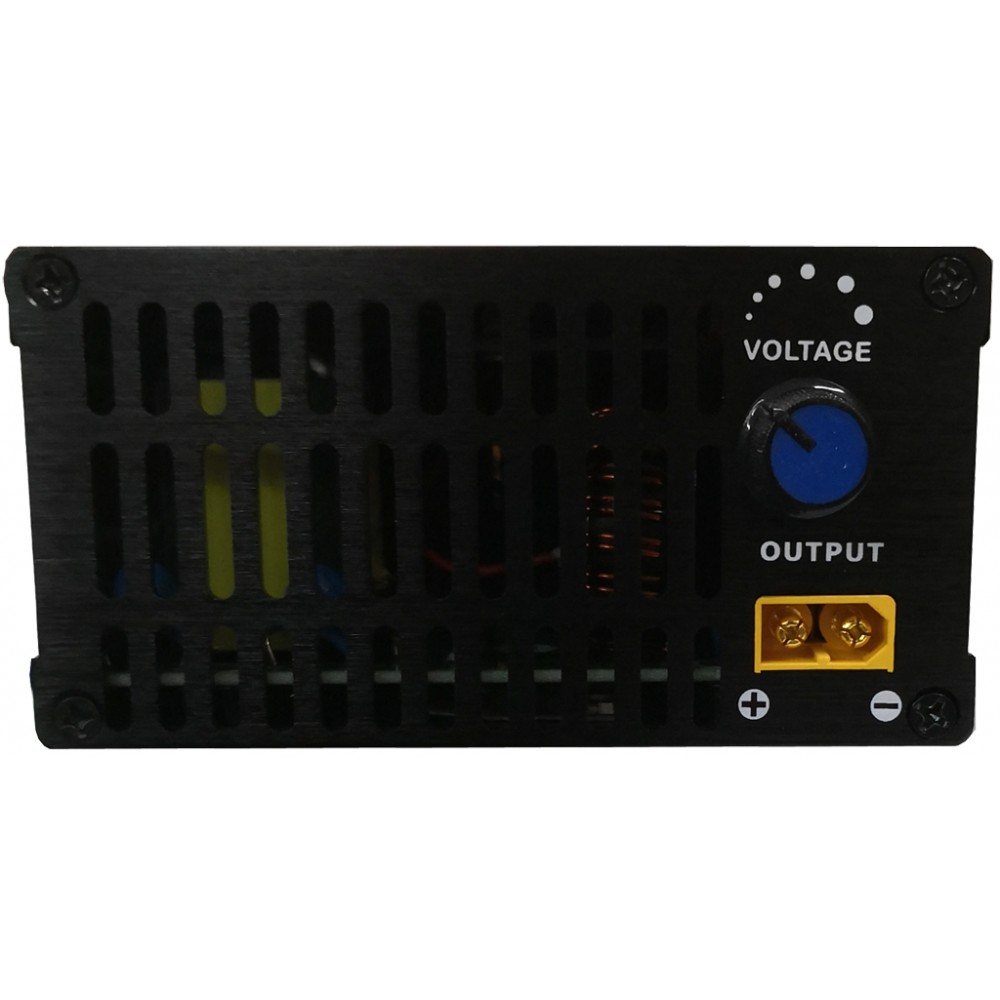

Output
- ated Voltage :10 ~ 30V programmed
- Voltage accuracy: ±1%
- Ripple voltage: 150mV.
- Rated Current:0 ~ 13.5A
Protection
- Over voltage protection and resume automatically,30.5V max.
- Over current protection and resume automatically, 14A max.
- Over load protection and resume automatically, 400W max.
- Over temperature protection and resume automatically, 85℃ max.
- Short- circuit protection on output and resume automatically.
Mechanical Characteristics
- Size:145*106*55 (L*W*H, mm) or 5.7 * 4.2 * 2.16 (L*W*H, inch)
- Weight: 0.8Kg without input cable
- Output DC connector: XT60.
Packaging Information
- S400 base unit: 1pcs
- Power cable: 1pcs
- Quickly Start card:1pcs
- Rubber foot: 4pcs
Manual

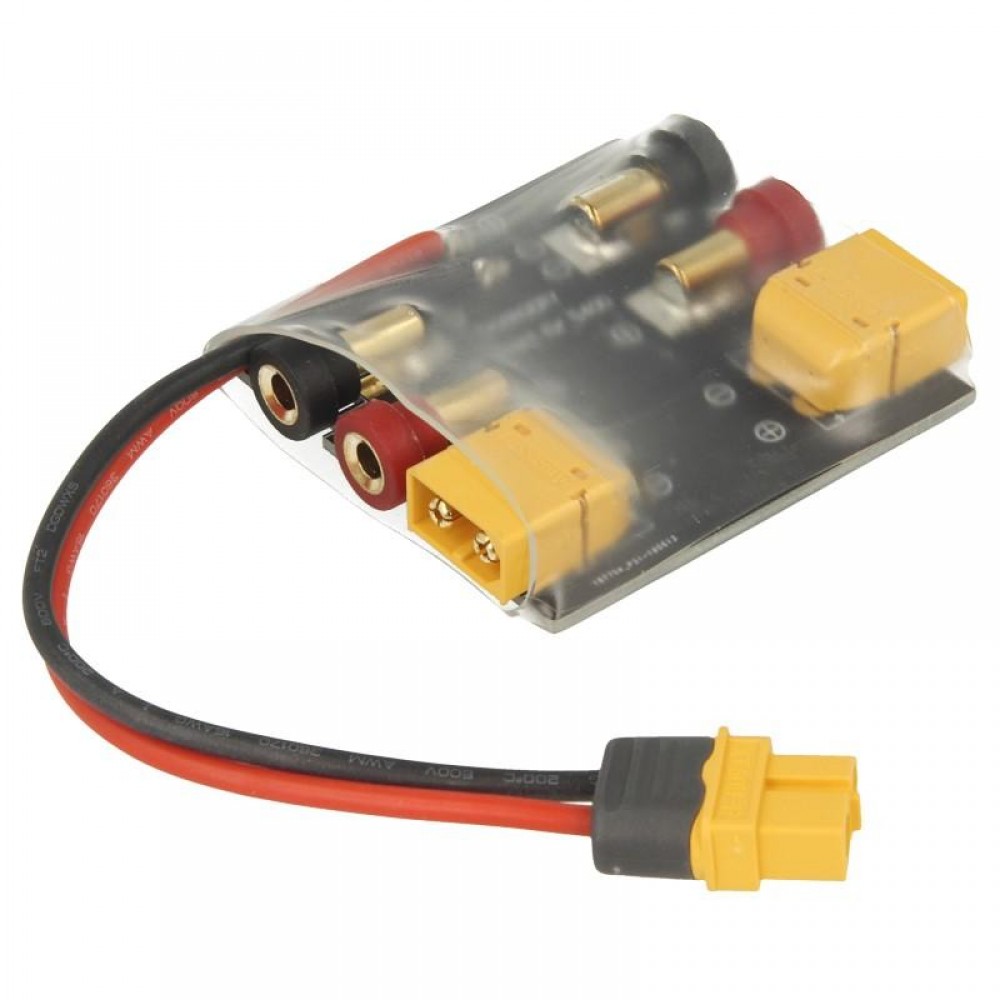

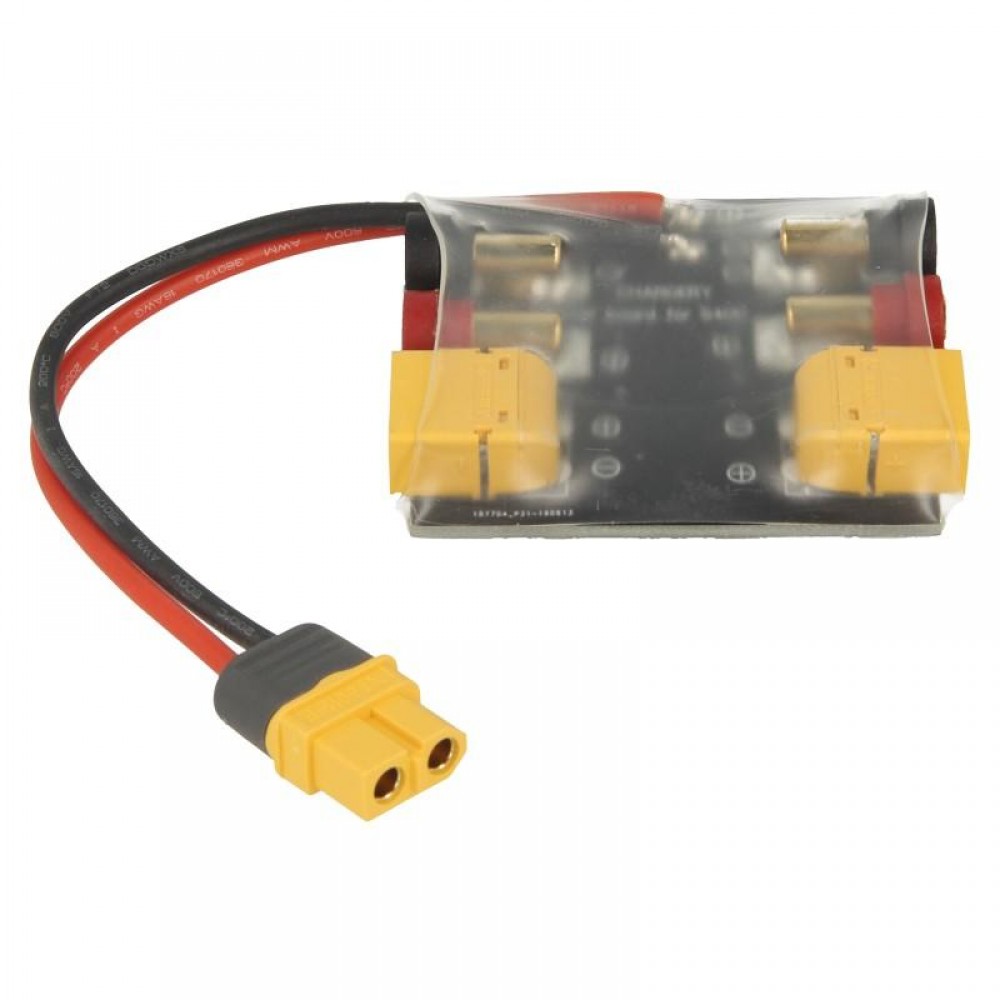

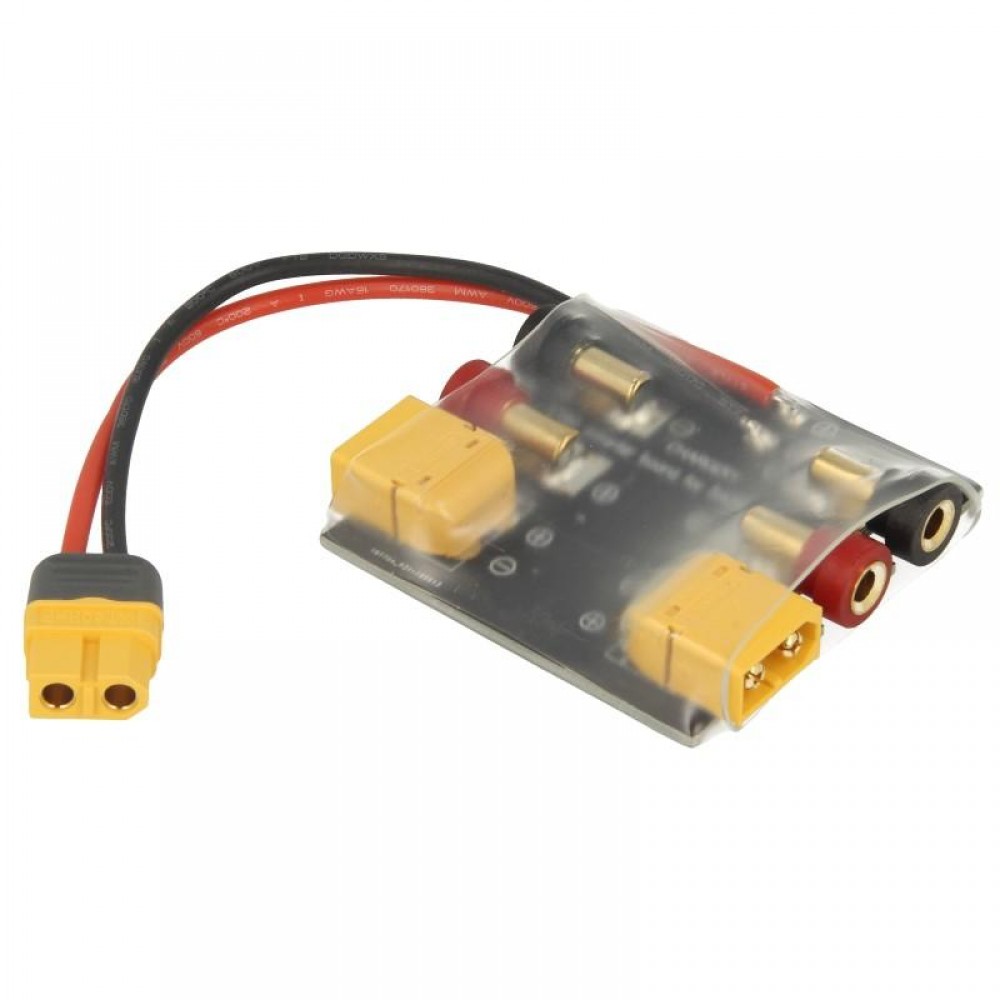

Optional board
The power supply S400 V3.0 has only one XT60 connector outlet.
The connection board can easily connect several devices to the S400 V3.
Technical data:
- Connecting cable AWG14 / 2,5 mmm with XT60 socket
- Distribution to 2x XT60 plugs and 2x 4 mm sockets
- Current load capacity up to 25A
