Brands CHARGERY
Product Code: S600PLUS V2.0
Availability: In Stock
$119.00
Ex Tax: $119.00

Available Options

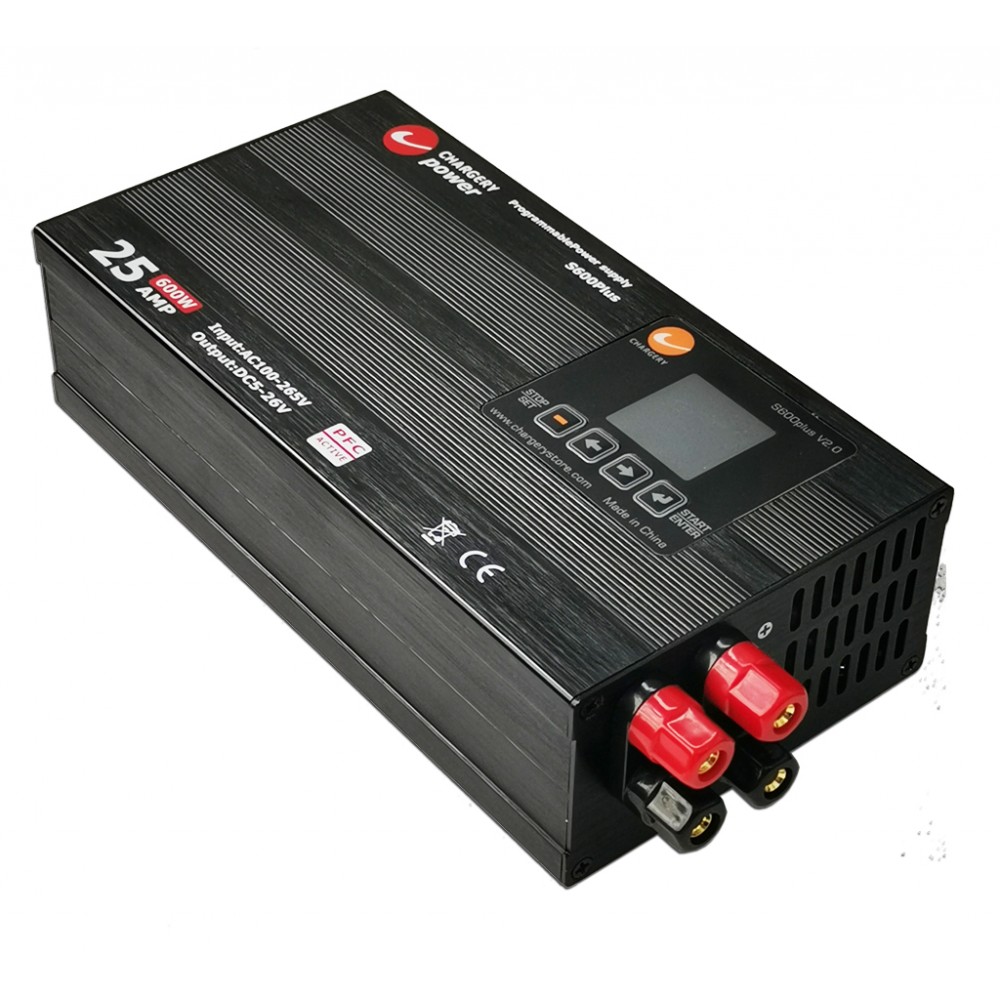

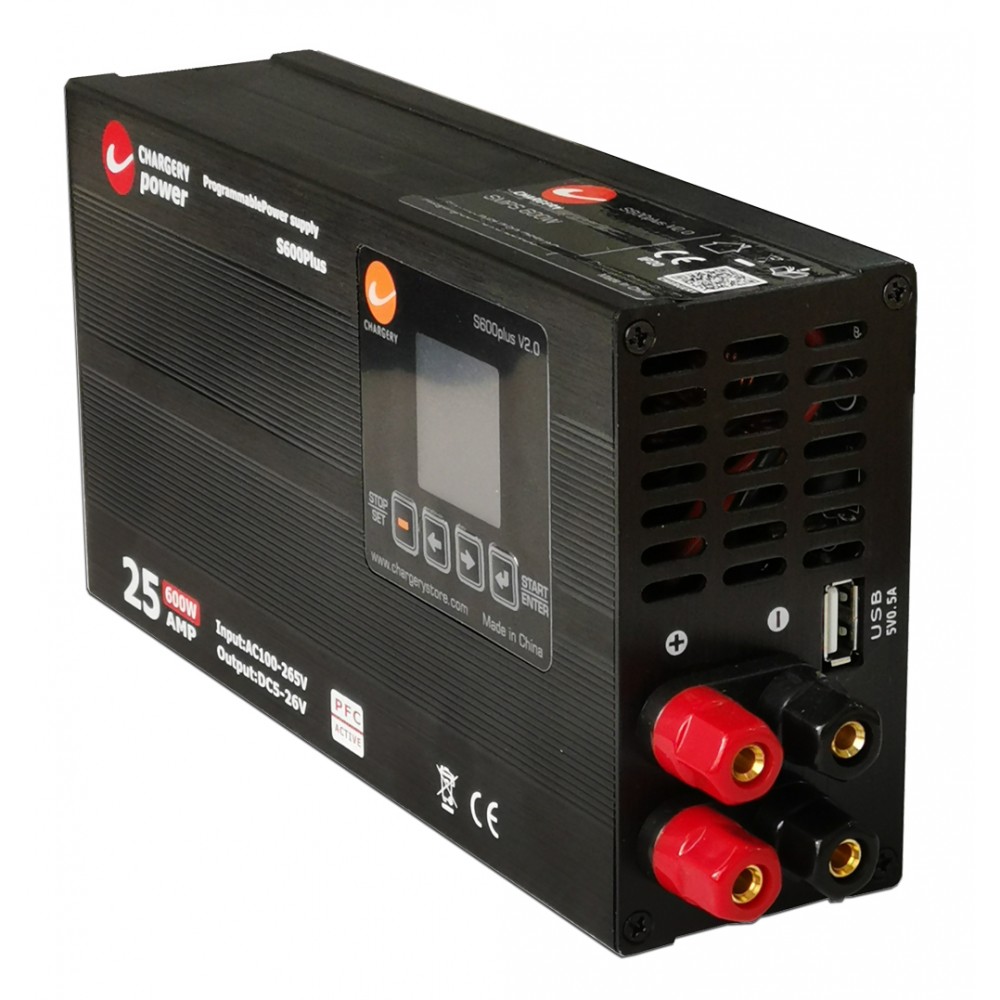

S600plus, PFC programmed power supply, can oupout 25A at 5V-26V, 600W at AC90V~265V in a smaller size. Many creative technology help to realize up to 91% of efficiency, and the internal temperature is still under 85℃. The following are some new features:

Features

  • Intelligent control output voltage and current by microprocessor, 100% calibration before delivery
  • ±1% voltage and current accuracy
  • Active PFC: smaller AC input current less interference, and Conform to European Commission Regulation no 278/2009 and Energy Star Version 2.0
  • AC 90-265V worldwide operation: need not any alternative switcher, worldwide safe operation.
  • Low power consumption (less than 1W) at idle mode and standby mode
  • Up to 94% of convert efficiency.
  • Programmable output voltage from 5V to 26V
  • Programmable output current from 1A to 25A

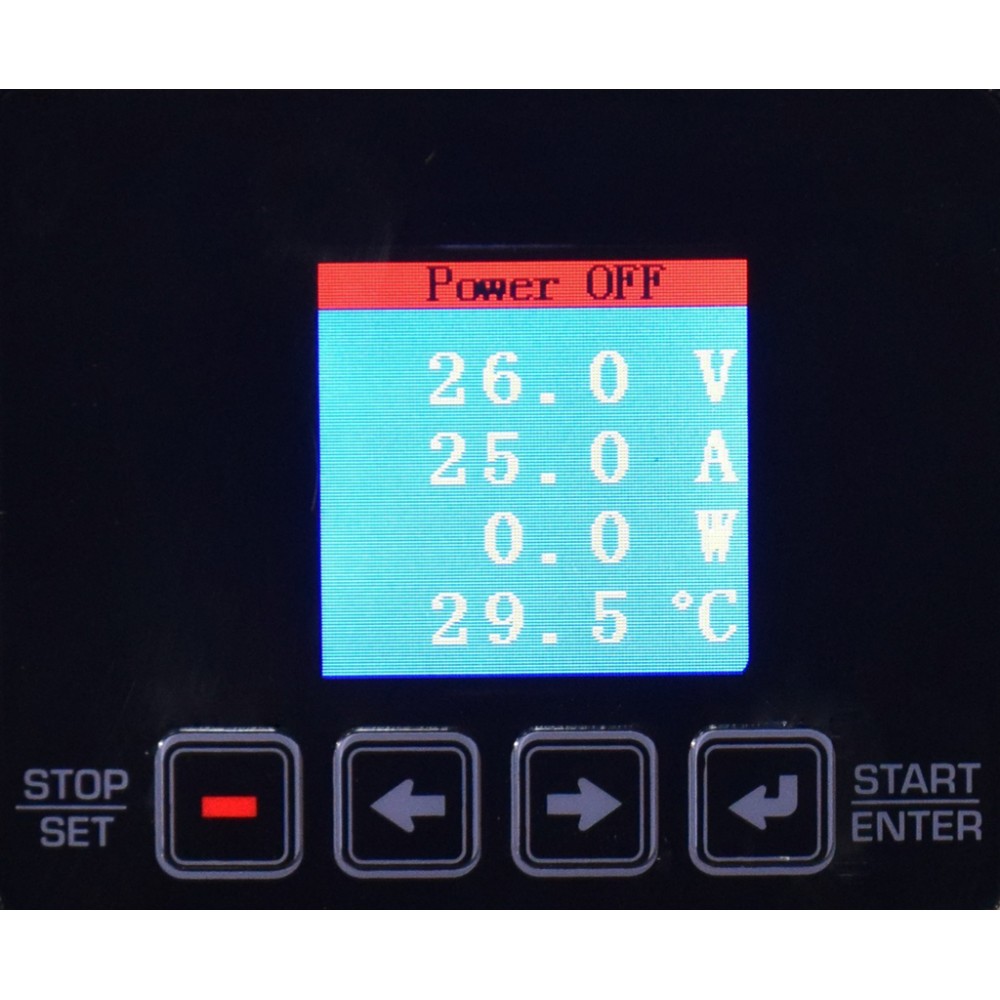

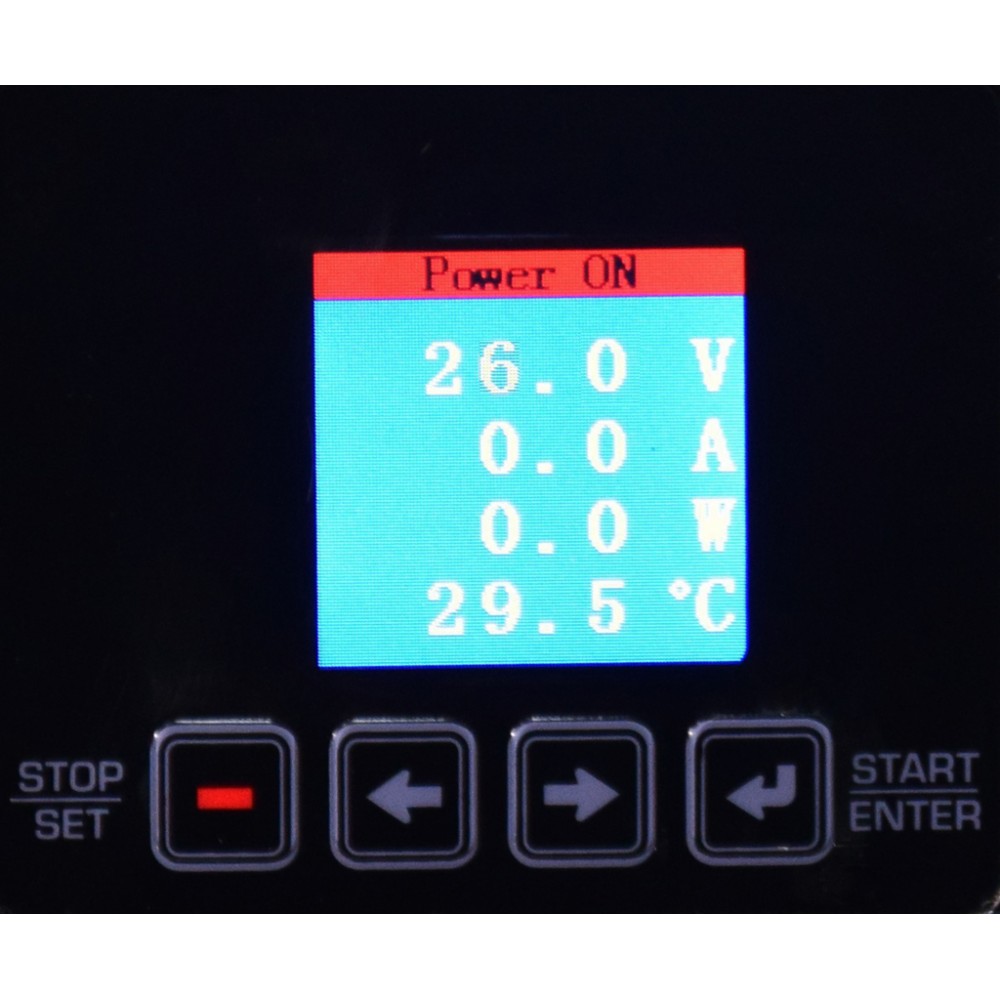

  • TFT color LCD display output Voltage, current, power and internal temperature on time.
  • Over current, over voltage, over load, over temperature, and short circuit protection
  • Short-circuit protection on output, safer and more reliable.

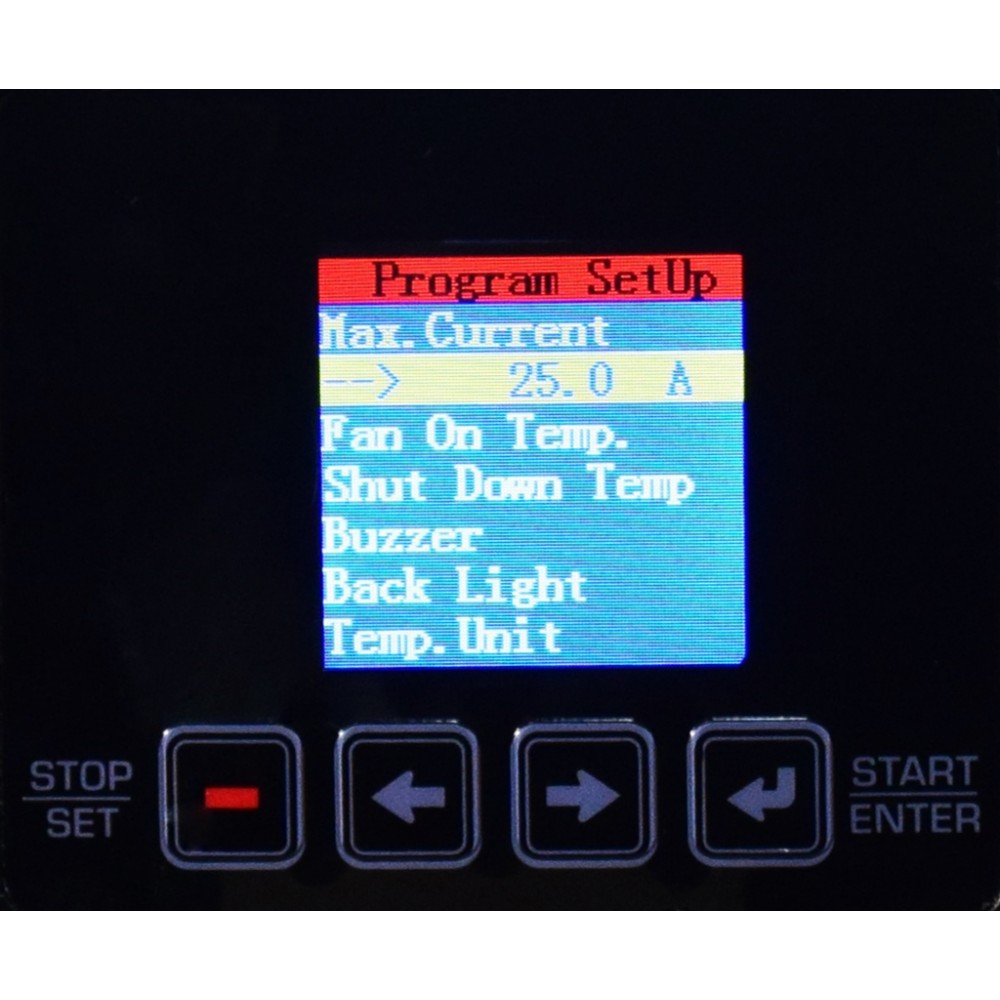

  • Intelligent cooling fans speed adjust automatically, the start temperature can be set up
  • 2 outputs can do more chargers simultaneously
  • Synchronous Rectification make sure the high efficiency and small size
  • High power density: 495W/Kg
  • Start at no load or full load perfectly
  • Approved by CE
  • 12 months warranty

Input

  • Rated Voltage : AC110 / 220V
  • Voltage allowed :AC100 ~ 265V
  • Rated Freq.   :50/60Hz
  • Freq. Allowed :47~63Hz
  • Max Current : 8A @90V, 3.3A @220V
  • Efficiency: 91% at 60% load and 220Vac input.
  • Active PFC: PF>0.99 at 90VAC and 100% of load; PF>0.97 at 220VAC and 100% of load

Output

  • Voltage :5 ~ 26V programmed
  • Voltage accuracy: ±1%
  • Ripple voltage: 150mV.
  • Current:0 ~ 25A (26A MAX.)
  • USB: 5VDC, 0~500mA.

Protection

  • Over voltage protection, over 2V setup value.
  • Over current protection, over 2A setup value.
  • Over load protection, 600W max.
  • Over temperature protection, 100℃ max.
  • Short- circuit protection on output.

Mechanical Characteristics

  • Size :223*106*55 (L*W*H, mm) or 8.7 * 4.2 * 2.16 (L*W*H, inch)
  • Weight: 1.25Kg without input cable

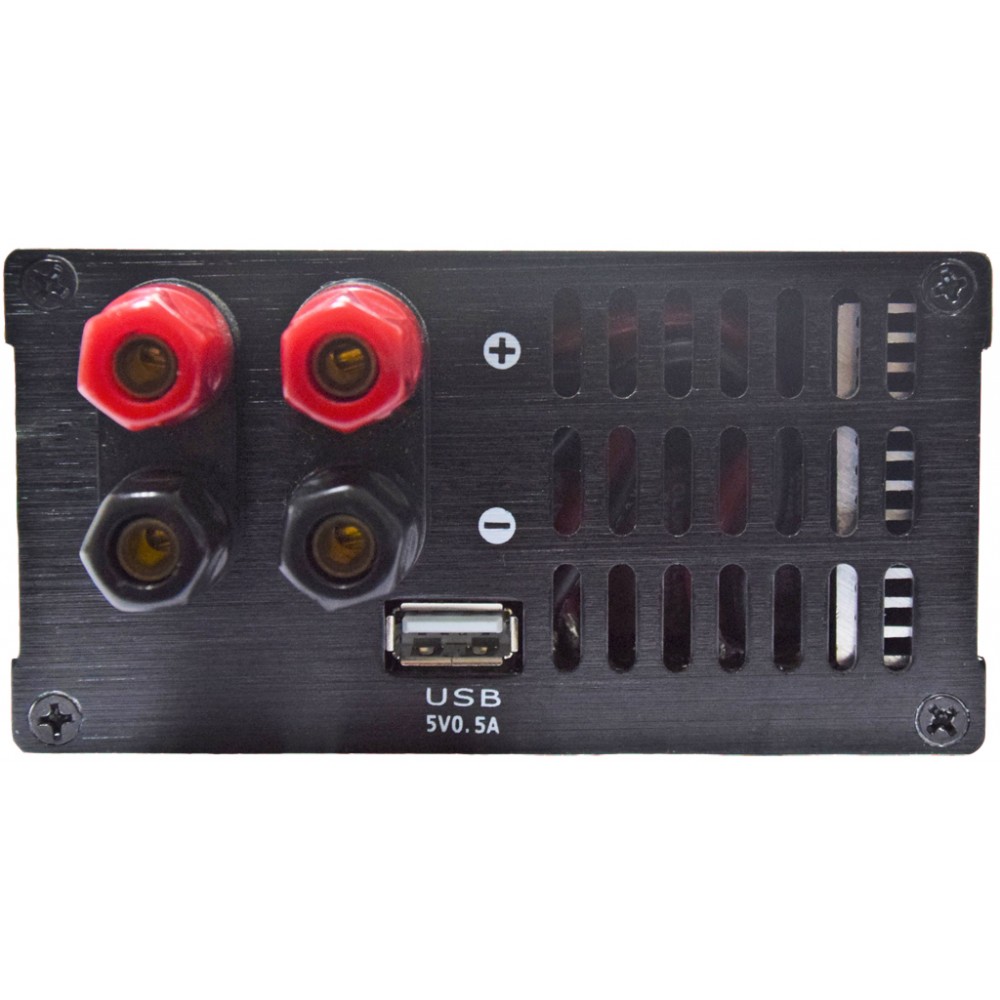

  • Output DC connector: 2 pairs 4mm gold banana female connector, each connector for 25A maximal current.
